How Firebird Database Encryption Works

(c) Alexey Kovyazin, IBSurgeon, Alex Peshkoff, Firebird Project, 2021

The article is based on the materials of the workshop "Database Encryption" at Firebird Conference 2019 in Berlin, Germany. It describes how Firebird database encryption works, on the server-level, on the client-side, how to configure database encryption, how to use it from the various types of applications (Delphi, Java, .NET). The article's examples are based on IBSurgeon Firebird Encryption Plugin Framework (FEPF) but can be adapted to the majority of currently available implementations of encryption plugins.

Contents:

  1. Why we need database encryption (and when we don't)?
  2. How Firebird database encryption works on the server-side
    1. What part of the database is being encrypted?
    2. When data pages are being encrypted?
    3. How to protect the key transfer?
  3. How Firebird encryption works on the client-side
    1. Native applications
    2. Java applications
    3. .NET applications
  4. Installation and Configuration
  5. How to track encryption progress
  6. Summary

1. Why we need database encryption (and when we don't)?

Firebird database encryption was introduced in Firebird 3.0 release (together with transfer protocol encryption, which is often confused with the discussed subject), and greatly increased capabilities to protect data from unauthorized access. However, it is not a panacea, and it is necessary to understand its strengths and weaknesses to use it properly.

In this article, we consider the internals of database encryption on the basic level, to give developers of Firebird applications a better understanding of how database encryption works.

So, why we need database encryption?
  1. To protect databases with sensitive/valuable data from "physical" stealing. If an intruder steals the disk with a copy of the encrypted database or somehow obtains a copy of a database file, it will be not possible to read data from it without an appropriate key, as well as it will be not possible to use recovery software like FirstAID to extract the data. Of course, it depends on the encryption algorithm and computing power, but cracking AES256 will require too long time or too expensive computing resources.
  2. To protect the database from access from non-authorized applications without encryption keys. Examples are
    • direct access with a developer tool by a non-authorized person, to change the sensitive information (e.g., money transactions),
    • changing or stealing business logic (texts of stored procedures and triggers).
  3. Protect databases with pre-filled data from exporting to or accessing by non-authorized applications.
  4. Governments recently introduced data protection laws (GDPR/DSVGO in Europe, LGPD in Brazil, etc) which require, among other things, a higher level of protection for personal and other sensitive data, and encryption is mentioned as one of the adequate protection measures.
When database encryption is not useful?

In some cases it is better to use the security and configuration capabilities of Firebird instead of database encryption:

  • To protect the database from physical access over the network, it is necessary to configure network access: i.e., close network shared folders, because Firebird does not require network shared access to database files, and tighten security permissions (for Linux, for example, database files must have read-write access only for user “firebird”).
  • To restrict access to the specific database for the specific subset of users, the easier solution will be to configure a separate security database.
  • To restrict access to the database objects (tables, stored procedures) it is necessary to use Firebird security mechanisms: users, roles, etc
Of course, both lists above are incomplete, but they give you some impression of when you need or don’t need database encryption.

2. How Firebird database encryption works on the server-side

Let’s go through the internal details of Firebird database encryption, and start with the server part.

2.1. What part of the database is being encrypted?

The first thing we need to consider is what part of the database is being encrypted? As you probably know, Firebird database consists of parts of equal size, called “database pages”. There are several types of such pages, each type serves a specific purpose.

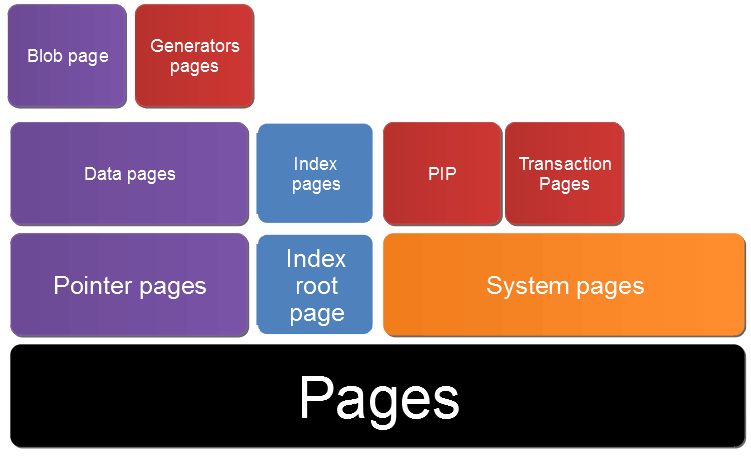

Below you can see the figure with main data types:

Figure 1. Database pages types


Some pages are designed to store users' data, and some others are needed to store system information, like transactions and page inventory pages (more details about database pages are available here).

When Firebird database is being encrypted, only pages with user data are being encrypted: data pages, indices, generators, and BLOBs:

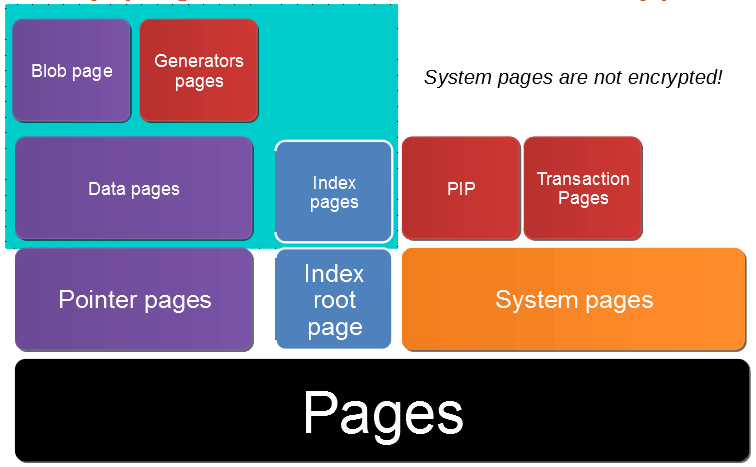

Figure 2. Only database pages with users’ data are encrypted


Please note, that database metadata (stored procedures, tables, views, triggers, generators names, etc) do not differ from “users’ data” inside the part of the engine responsible for the encryption, and they are encrypted.

Why system pages are not being encrypted? For performance reason, mostly, and due to the fact that they don’t contain sensitive data which require protection.

The database header page is not encrypted, because it contains information needed for encryption (for example, key name).

2.2. When data pages are being encrypted?

When a user executes SELECT from the encrypted database, the data are being read from the encrypted file but arrive at the application’s grid with resultset in non-encrypted form.

Let’s consider the details of this process:

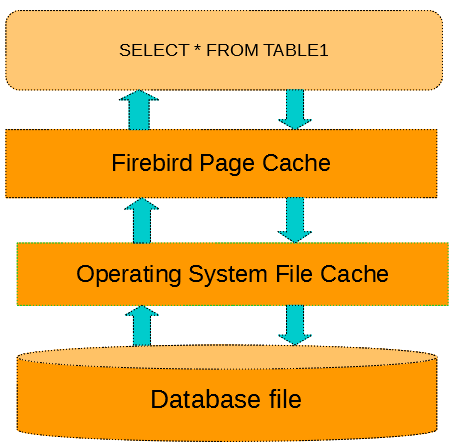

Figure 3. When database pages are being encrypted?


Usually, the process starts with series of reads of database pages from a database file, and they are being cached in the Operating System file cache.

Firebird also can be configured to bypass file cache and use only the own cache, but by default, file cache is used.

After that, Firebird reads pages and puts them into the Firebird Page cache (it is defined by DefaultDBCachePages parameter in firebird.conf and/or databases.conf or in the database header page).

Then, pages from the cache are being selected to the result set of the particular SQL statement (SELECT in our example).

The figure below shows details:

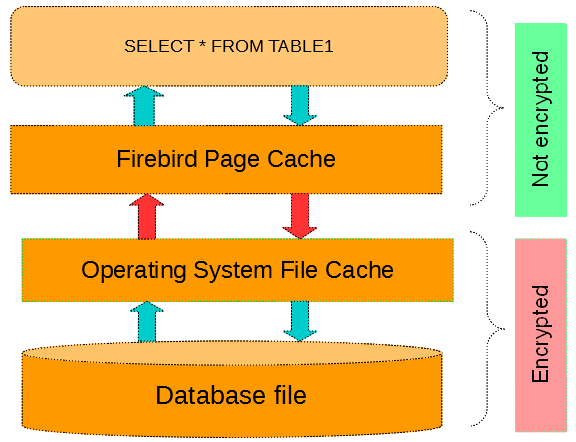

Figure 4. Pages are being encrypted between Firebird Cache and OS file cache


So, database pages are encrypted in OS file cache but arrive at Firebird page cache non-encrypted, and vise versa.

The part of Firebird software responsible for encryption/decryption is called "encryption plugin". Since the majority of plugin implementations (known to authors) are called DbCrypt, we will refer to it as DbCrypt.

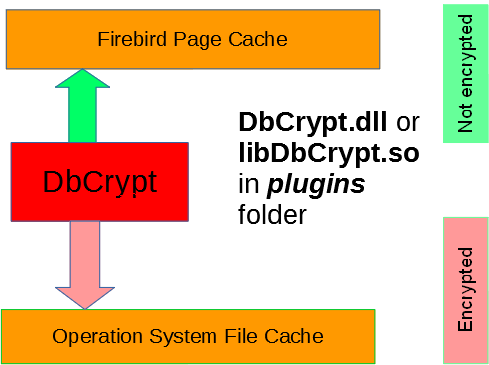

On the figure below you can see variants for Windows (DbCrypt.dll) and Linux (libDbCrypt.so):

Figure 5. Encryption plugin (DbCrypt) is doing encryption/decryption


If you look at this picture long enough, the next question will appear pretty quickly: how DbCrypt gets the proper key to encrypt/decrypt database pages?

The answer – there is another plugin for key management.

The typical name for key management is KeyHolder, which serves as a key storage/management facility for the encryption plugin (DbCrypt). KeyHolder implements the interface for key management which is used by DbCrypt.

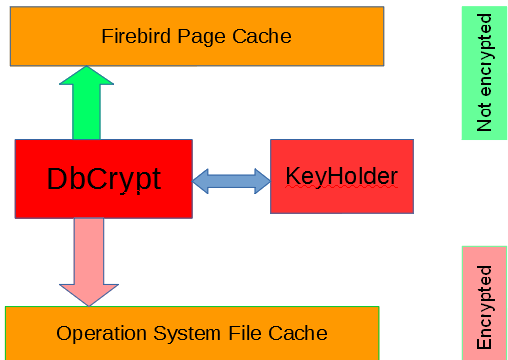

Figure 6. DbCrypt and KeyHolder


What does “key management” means?

In the simplest case, DbCrypt can read keys from the file on the server. The file can be a simple plain text file, which can be hidden in the “secret” place or on a USB stick, or can be an encrypted file (using Windows Crypto API, for example, or with a built-in internal key).

The key file can contain several keys, stored, for convenience, as named list, and can look like this (the example below is taken from the IBSurgeon encryption plugin framework):

Key=Red 0xec,0xa1,0x52,0xf6,0x4d,0x27,0xda,0x93,0x53,0xe5,0x48,0x86,0xb9,0x7d,0xe2,0x8f,0x3b,0xfa,0xb7,0x91,0x22,0x5b,0x59,0x15,0x82,0x35,0xf5,0x30,0x1f,0x04,0xdc,0x75,
Key=Green 0xab,0xd7,0x34,0x63,0xae,0x19,0x52,0x00,0xb8,0x84,0xa3,0x44,0xbd,0x11,0x9f,0x72,0xe0,0x04,0x68,0x4f,0xc4,0x89,0x3b,0x20,0x8d,0x2a,0xa7,0x07,0x32,0x3b,0x5e,0x74,

When the database is encrypted, its header pages remains non-encrypted to store information about the encryption plugin and the name of the key, and you can see this information with the command  "gstat -h databasename":
Database header page information:
....
Creation date    Jan 11, 2017 15:12:20
Attributes       force write, encrypted, plugin DBCRYPT

Variable header data:
 Crypt checksum: MUB2NTJqchh9RshmP6xFAiIc2iI=
 Key hash:       ask88tfWbinvC6b1JvS9Mfuh47c=
 Encryption key name:    RED
 Sweep interval:         0
*END*
DbCrypt can process pages for several databases and several keys:

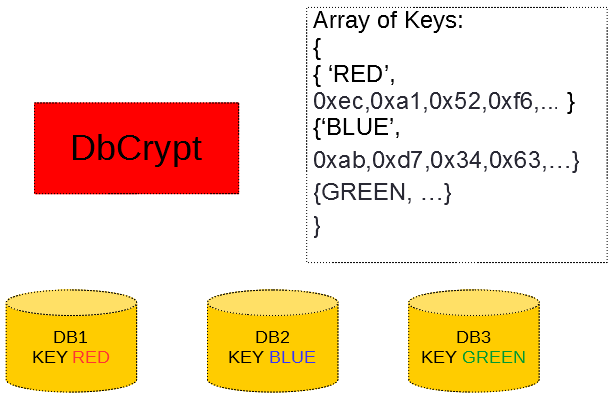

Figure 7. Multiple keys for multiple databases on the same server (i.e., Firebird instance)

Choosing the correct key
Often developers ask the question "How does the plugin recognize which key is for what database?" The answer is pretty simple: by the key name, which is stored on the header page of the database.
Less often, but still important question - what if the key name will be as it is recorded in the header, but the key value is different? To prevent page read errors due to the wrong key, DbCrypt plugin stores the encrypted test sequence (digits 0...F) on the header, and then the key is activated, the plugin tries to encrypt the sample data with a key and compare its hash with the stored result, to ensure that passed key value is actually correct for this particular database.

The approach when encryption plugin reads keys directly, is simple and beneficial for debugging, performance tests, etc, because it implements encryption in a transparent way: i.e., client applications and developers tools do not know that database is encrypted.

However, in reality, we need to restrict access of applications to the database: only client application which has a key should be able to connect to the encrypted database.
For this, we need the KeyHolder plugin, to get the key from the client application (which usually is on another computer) through the Firebird network protocol.

2.3. How to protect the key transfer?

It is possible that we want to protect the database in the situation when the customer decides to get direct access to the encrypted database, bypassing the authorized applications (many vendors want to restrict data from the direct access, either read-only or read-write).

It is equivalent to the situation when an intruder has the access to the server but doesn’t have keys.

Let’s consider the following attack scenarios to intercept keys on the server-side:

1) When the intruder creates the fake encryption plugin (DBCrypt.dll) and puts it on the server, and when KeyHolder passes the key, fake DbCrypt makes the dump of the key:

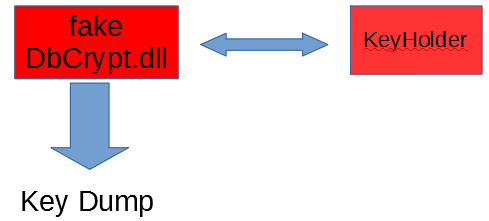

Figure 8. Attack with fake DbCrypt.dll


2) When the intruder creates the fake firebird.exe file and makes the dump with it:

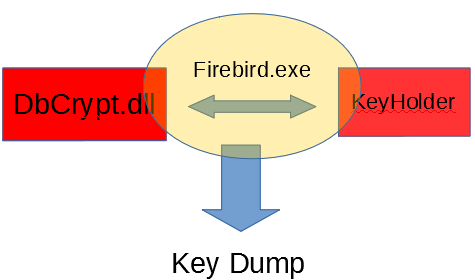

Figure 9. Attack with fake firebird.exe

In order to protect from such attacks, the good implementation of encryption and key management plugins need to protect key exchange.

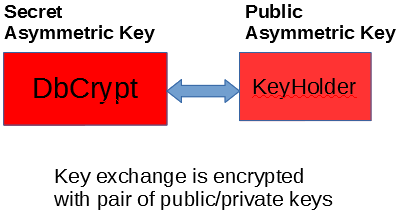

Key exchange can be protected with asymmetric encryption with the pair of public/private keys.

These keys are generated during the build process and built-in for the specific pair of encryption and key management plugins. For the best protection, it is necessary to use specially built pairs of DbCrypt/KeyHolder.


When DbCrypt and KeyHolder exchange the keys, they use the following protocol (it is simplified, but the idea is clear, I guess):

DbCrypt → KeyHolder:
	Give Me The Database Key With this Salt
KeyHolder:
	Encrypts DbKey With Public key using salt from DbCrypt
	Transfers Encrypted DbKey to DbCrypt
DbCrypt:
	Decrypt DbKey With Private Key
	Validate salt correctness
	Ready To Work
More or less the same protocol is used to exchange keys between instances of KeyHolder, and for keys exchange between a client application and KeyHolder.

Please note that encryption and correctness of transferred keys depend on the plugin implementation, the Firebird engine provides only basic low-level transfer service “send N bytes from this plugin instance to that plugin instance”.

Summary for the server-side part of the encryption

  • Encryption/decryption is done by database encryption plugin (DbCrypt), page by page, during data exchange between Operating System file cache and Firebird page cache
  • Key management can be implemented in a simple way when DbCrypt reads keys directly, but usually, it is done with key management plugin (KeyHolder)
Now let’s discover how client applications work with encrypted databases.

3. How Firebird encryption works on the client-side

3.1. Native applications

In order to understand what happens when a client application connects to the encrypted database, let’s consider the regular connection process to the non-encrypted database for native applications.

Please note: from here and below, “native” means that such application establishes a network connection with the server using fbclient.dll, usually, such app is built in Delphi, C++, PHP. Unlike native applications, Java and .NET implement their own version of the protocol, they will be considered below.

Connection process:

  1. Client application loads client library
    1. fbclient.dll – native Windows apps
    2. libfbclient.so - native Linux apps
  2. Client application initiates a connection, sending
    1. Username, e.g. SYSDBA
    2. Password, e.g., masterkey
    3. Path/alias of the database
In the case of an encrypted database, an additional step is required: it is necessary to pass the name of the encryption key and its value.

It is important to say that passing key should be done before the regular connection, due to the fact that data pages with metadata, including database owner name, charset, etc, are encrypted.

So, it leads us to the following:

  1. Additional network roundtrip is necessary to pass the key before the regular connection
  2. Key transfer from the client application to Firebird requires coding with the usage of asymmetric encryption and implementation of callback interface, it can be pretty complex. To simplify this task, plugin vendors provide an example of the code to connect, or, like in the IBSurgeon plugin framework, create the additional library fbcrypt.dll/libfbcrypt.so, which implements the easy to use suitable interface to transfer keys from the client application.
To connect a native application (which uses fbclient.dll) to the encrypted database, 3 calls should be done. Below is a Delphi example (simplified, without error handling):

In BeforeConnect event handler:

fbcrypt_init(PAnsiChar(‘C:\Firebird30\fbclient.dll’));
fbcrypt_key(‘RED’, ‘0xec,0xa1,0x52,0xf6,...’));
fbcrypt_callback(nil);

 // Then connect as usual
Database1.Active:=True;

On the figure below you can see the overview of the connection process with an encrypted database in the native application:

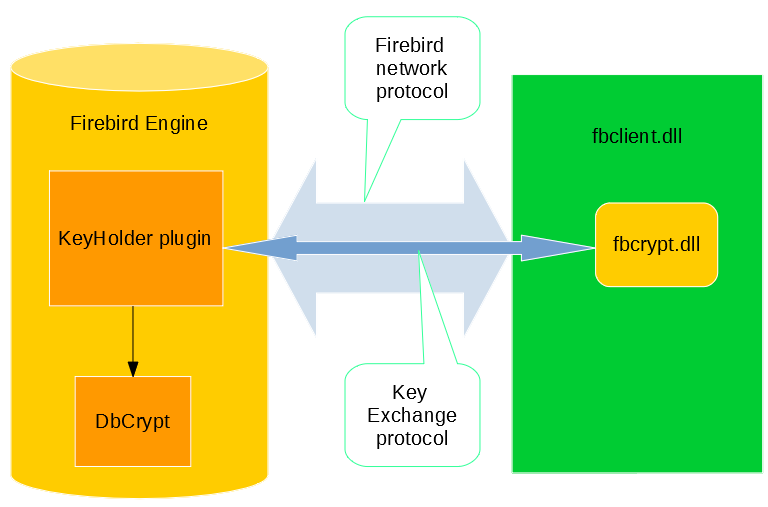

Figure 10. Connection process to the encrypted database for native applications


What about thread safety in the case of multi-thread client applications?
The general rule is the same as for the usual connection – every thread must have its own connection, and for every thread must be done the separate transfer of encryption key.

Key transfer calls (fbcrypt.dll calls in FEPF example) must be done before the connection, in the same thread where the connection will be established.

When we work with many databases (for example, SaaS web server with many clients databases), it is important to remember, that every invocation of fbcrypt_key() adds a key to KeyHolder storage, associated with the current connection.

Keys values must be set before the connection, after the attachment, the key value cannot be changed.

In case of detaching, keys are not unloaded, they will be kept in memory till the unload of fbcrypt.dll.

3.2. Java applications

Java driver (JayBird) has its own implementation (in pure Java) of the Firebird connection protocol. Jaybird 4 (and 3.0.4+) adds support for Firebird 3 database encryption callbacks in the pure Java implementation of the version 13 protocol.

From Jaybird 4 Readme:

The current implementation is simple and only supports replying with a static value from a connection property. Be aware that a static value response for database encryption is not very secure as it can easily lead to replay attacks or unintended key exposure.

Future versions of Jaybird (likely 5) will introduce plugin support for database encryption plugins that require a more complex callback.

Practically, it means that we need to set value for encryption callback (normally, it is a key name and key-value pair) in the connection property dbCryptConfig.

For example:

 edConnectionString.setText("jdbc:firebirdsql://localhost/g:/Databases/ODS12/crypt.fdb?lc_ctype=utf8&dbCryptConfig=MyKey:0xec,0xa1,0x52,0xf6,0x4d,0x27,0xda,0x93,0x53,0xe5,0x48,0x86,0xb9,0x7d,0xe2,0x8f,0x3b,0xfa,0xb7,0x91,0x22,0x5b,0x59,0x15,0x82,0x35,0xf5,0x30,0x1f,0x04,0xdc,0x75,");

It is also possible to specify string in base64 – from the readme:

Strings prefixed with base64:: rest of the string is decoded as base64 to bytes.
The = padding characters are optional, but when present they must be valid (that is: if you use padding, you must use the right number of padding characters for the length).
When the base64 encoded value contains +, it must be escaped as %2B in the JDBC URL. For backward compatibility with Jaybird 3, we can't switch to the URL-safe variant of base64.


In IBSurgeon implementation of key management plugin such transmission of the key is considered as more or less unsafe: if the network protocol encryption is not enabled (btw, to enable it, set in firebird.conf WireCrypt=Required and don’t use legacy authentication), the key can be easily spotted with network traffic analyzer like WireShark, so, in order to enable transmission of keys in this way, it is necessary to set UnsafeClient=true in KeyHolder.conf of IBSurgeon key management plugin.

3.3 .NET applications

Firebird.NET provider implements a similar scheme of key exchange for encrypted databases and also requires to set the parameter UnsafeClient=true in KeyHolder.conf in FEPF.

.NET example of the connection string for encrypted databases:

string connectionString =
                "User=SYSDBA;" +
                "Password=masterkey;" +
                "Database=G:\\Databases\\ODS12\\CRYPT.FDB;" +
                "DataSource=localhost;" +
                "Port=3053;" +
                "Dialect=3;" +
                "Charset=NONE;" +
                "Role=;" +
                "Connection lifetime=15;" +
                "Pooling=true;" +
                "MinPoolSize=0;" +
                "MaxPoolSize=50;" +
                "Packet Size=8192;" +
                "ServerType=0;" +
                 "cryptkey = TXlLZXk6MHhlYywweG…...;";
You can notice that encryption key looks different than in the example for native applications and JayBird, this is because it is the result of Base64 transformation, so to get key for .NET or Java application, it is necessary to calculate base64 from string:

"MyKey:0xec,0xa1,0x52,0xf6,0x4d,0x27,0xda,0x93,0x53,0xe5,0x48,0x86,0xb9,0x7d,0xe2,0x8f,0x3b,0xfa,0xb7,0x91,0x22,0x5b,0x59,0x15,0x82,0x35,0xf5,0x30,0x1f,0x04,0xdc,0x75,"

and use it as param for "cryptkey=xxx;" with ";" at the end of the connection string.

4. Installation and Configuration

In order to enable database encryption and key management plugin to be used, it is necessary to specify the name of the encryption plugin in the Firebird configuration file firebird.conf:
 KeyHolderPlugin = KeyHolder

Or, alternatively, in databases.conf, for the alias of the encrypted database:
myencrypted = C:\Temp\EMPLOYEE30\EMPLOYEE30.FDB { KeyHolderPlugin = KeyHolder }

Then, it is necessary to check that all files needed for the plugin are on the server.
The example below is for IBSurgeon’s FEPF, but other plugins are more or less similar:
in %FirebirdFolder$\plugins
    • DbCrypt.dll
    • DbCrypt.conf
    • KeyHolder.dll
    • KeyHolder.conf – for debug mode only!

In %FirebirdFolder$
    • fbcrypt.dll
    • libcrypto-1_1-x64.dll
    • libssl-1_1-x64.dll
    • firebird.msg

After that, we can perform the test encryption on the server, for this, in isql:
isql.exe localhost:C:\Temp\EMPLOYEE30\EMPLOYEE30.FDB -user SYSDBA -pass masterkey
SQL>alter database encrypt with dbcrypt key red;
SQL> show database;
Database: localhost:C:\Temp\EMPLOYEE30\EMPLOYEE30.FDB
….
ODS = 12.0
Database encrypted
Default Character set: NONE

If you are on Linux, remember that case is important, so the command will be:
alter database encrypt with "DbCrypt" key Red;
Now, we can test client access to the encrypted database. For this, we will remove (or rename or edit) configuration file KeyHolder.conf, and try to connect to the encrypted database with the simple test application.

For this, we must put in the folder with client app the following files:

  • Demo app from FEPF – CryptTest.exe (32bit)
  • Mandatory files:
    • fbclient.dll
    • fbcrypt.dll
    • libcrypto-1_1.dll
    • libssl-1_1-x64.dll
  • Optional files:
    • firebird.conf
    • in plugins
    • ◦ KeyHolder.conf
    • ◦ keyhodler.dll
In some implementations of key management plugins, it is possible to load keys in the client library (fbclient.dll), without modification of the client software.

It enables the transparent work of Firebird developers tools (like Firebird SQL Studio, DatabaseWorkbench, IBExpert, FlameRobin, RedExpert, etc), and transparent usage of Firebird command-line tools (gfix.exe, nbackup.exe, etc).

5. How to track encryption progress

Firebird is encrypting a database only when it has active connections. The encryption process is running in a separate parallel thread, and for big databases, the complete encryption can take significant time.

In order to track the encryption process, run either SQL query from MON$:

select mon$crypt_page * 100.0 / mon$pages as Percent from mon$database;
commit;
or execute gstat tool with special switch:
gstat -e dbname

Database "D:\ENCDB\TESTENCRYPT.FDB"
Gstat execution time Tue Mar 16 11:45:11 2021

Database header page information:
        Flags                   0
        Generation              10697
        System Change Number    3
        Page size               8192
        ODS version             12.0
        Oldest transaction      7053
        Oldest active           7054
        Oldest snapshot         7054
        Next transaction        7054
        Sequence number         0
        Next attachment ID      17834
        Implementation          HW=Intel/i386 little-endian OS=Windows CC=MSVC
        Shadow count            0
        Page buffers            0
        Next header page        0
        Database dialect        3
        Creation date           Oct 9, 2019 6:42:31
        Attributes              encrypted, plugin DBCRYPT

    Variable header data:
        Database backup GUID:   {866B4967-ED58-427E-A481-DB9206CEA2ED}
        Crypt checksum: MUB2NTJqchh9RshmP6xFAiIc2iI=
        Key hash:       ask88tfWbinvC6b1JvS9Mfuh47c=
        Encryption key name:    RED
        Database GUID:  {323FE494-1771-4608-E99D-C1B69C84578B}
        *END*

Data pages: total 105, encrypted 105, non-crypted 0
Index pages: total 95, encrypted 95, non-crypted 0
Blob pages: total 0, encrypted 0, non-crypted 0
Generator pages: total 1, encrypted 1, non-crypted 0
Gstat completion time Tue Mar 16 11:45:11 2021

Please note that gstat execution can be a lengthy process.

6. Summary

  1. Firebird database encryption is a powerful feature to protect the information in the databases from non-authorized access.
  2. The encryption process requires a server-side dynamic library - the encryption plugin (usually called DbCrypt), and, in the vast majority of situations, the key management plugin (usually it is called KeyHolder).
  3. The secure and reliable implementation of DbCrypt and KeyHolder plugins should be done with the most popular attack types in mind.
  4. In order to work with the encrypted database, client applications must transfer the encryption key.
  5. Installation and configuration of encryption plugin on server-side is trivial, it requires 1 parameter in the firebird.conf/databases.conf, and several files.
  6. The encryption process can be lengthy, it is done in the separate background thread, the progress can be progress with MON$ call or gstat.

What next?

  We are working on the detailed performance test of Firebird database encryption. In general, the performance is 4-8% less, but it depends on the hardware and Firebird settings. Stay tuned!

Contact us:

Please send your suggestions, typos, errors, etc, and any questions by email: [email protected]
