Demo Firebird Encryption

How to encrypt the database with IBSurgeon's Firebird encryption plugin

In this short guide, we will demonstrate the key features of the encryption: how to encrypt your Firebird database on the server, how to implement an encrypted client connection, and perform backup/restore of the encrypted database. The demo of FEPF is fully functional, with the only exception - it is limited till December 31, 2018.

Prerequisites

To try Firebird encryption, you need the following:
  • Download archive with the demo version of Firebird Encryption Plugin and demo client application with sources.
  • Firebird 3.0.3 or higher – to test demo plugin it is necessary to use official release 3.0.3 64bit or 32bit, or higher (3.0.4, 3.0.5). Older versions are not supported by the demo version of the plugin.
  • Create SYSDBA user, if it is not created (stop Firebird service, run «isql -user sysdba»  employee.fdb, CREATE USER SYSDBA PASSWORD 'masterkey', start Firebird service)

Stage 1 – Initial encryption of the database

At the point, we suppose that you have some database to be encrypted. Put unencrypted database to some path, for example, into c:\temp\employee30\employee.fdb
We suppose that all actions are made with 64-bit version of the Firebird 3.0.3+, in case of 32-bit version simply use the files from WinSrv32bit_ServerPart folder.

1. Create the following alias in databases.conf

crypt = C:\Temp\EMPLOYEE30\EMPLOYEE30.FDB
{
   KeyHolderPlugin = KeyHolder
}
Also, you can declare KeyHolder plugin for all databases at the server, for this add the following parameter to firebird.conf:
KeyHolderPlugin = KeyHolder
or, simply copy firebird.conf at step 2 (see below)


2. Put the following files to server/plugins from the folder WinSrv64Bit_ServerPart \plugins

  • DbCrypt.dll
  • KeyHolder.dll
  • KeyHolder.conf - this is the text file with keys, it is only for developer's usage, it should not be sent to end users!

3. Put the following files into Firebird root from the folder WinSrv64Bit_ServerPart

  • fbcrypt.dll
  • libcrypto-1_1-x64.dll
  • libssl-1_1-x64.dll
  • gbak.exe
  • firebird.msg
  • firebird.conf (optional, can be used as an example)

4. Connect to the unencrypted database with isql and encrypt the database:

isql localhost:C:\Temp\EMPLOYEE30\EMPLOYEE30.FDB -user SYSDBA -pass masterkey
SQL>alter database encrypt with dbcrypt key red;
SQL> show database;
Database: localhost:C:\Temp\EMPLOYEE30\EMPLOYEE30.FDB
        Owner: ADMINISTRATOR
PAGE_SIZE 8192
Number of DB pages allocated = 326
Number of DB pages used = 301
Number of DB pages free = 25
Sweep interval = 20000
Forced Writes are OFF
Transaction - oldest = 2881
Transaction - oldest active = 2905
Transaction - oldest snapshot = 2905
Transaction - Next = 2909
ODS = 12.0
Database encrypted
Default Character set: NONE
Let's consider the encryption command:
alter database encrypt with dbcrypt key red;
Here, dbcrypt is the name of the encryption plugin, and red is the name of the key to being used. Keys are defined in KeyHolder.conf file.
Please note - on Linux it is necessary to use quotes and case-sensitive plugin name:
 alter database encrypt with "DbCrypt" key Red;

After that, the database is encrypted with server-side authentication: the keys are located in the file KeyHolder.conf.

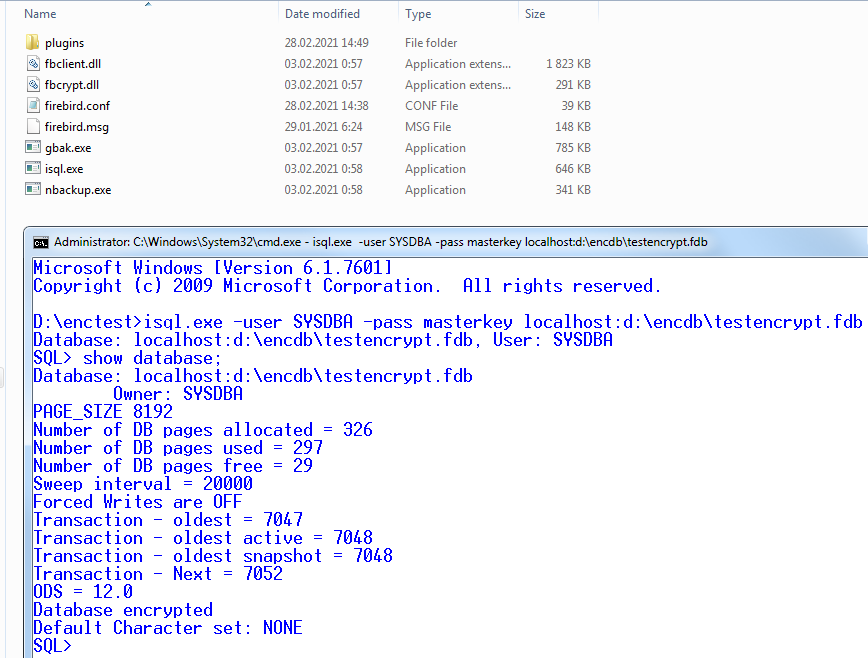

At the figure below you can see files we have on the server to enable the encryption, and what we need on the client side:

On the server's side (Firebird-3.0.3.32900-0_x64) On the client's side (demo - CryptTest.exe) - 32bit
Mandatory files: Mandatory files:
plugins/dbcrypt.dll fbclient.dll
plugins/keyholder.dll fbcrypt.dll
libcrypto-1_1-x64.dll libcrypto -1_1.dll
libssl-1_1-x64.dll Optional files:
fbcrypt.dll firebird.conf
Files for gbak with encryption:
gbak.exe
firebird.msg
Optional files:
plugins/KeyHolder.conf (for initial encryption in development mode)
firebird.conf (contains parameter to set encryption plugin)

Stage 2 – Connect to the encrypted database with the client application

After the initial encryption, we suppose that the database will be copied to the customer environment, where access to it will be done only through the authorized application.

To imitate such environment, we need to remove (or simply rename) the file with keys (KeyHolder.conf) from the folder plugins.

Without KeyHolder.conf, the encryption plugin will require receiving the key from the connected application. The example of such application is included in the archive with demo plugin – there is a compiled version and full sources for it on Delphi XE8.

The code to initialize encrypted connection is very simple – before the usual connection, several calls should be done to send an appropriate key. After that, the client application works with Firebird as usual.

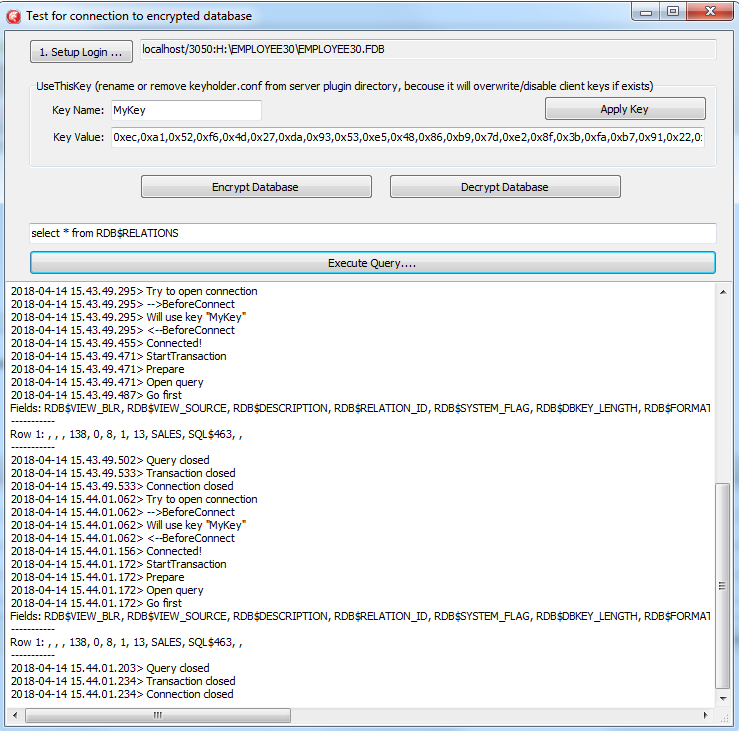

Run the demo application to test the work with the encrypted database, it is in the folder CryptTest\EnhancedCryptTestClient\Win32\Debug.
Do the following steps:

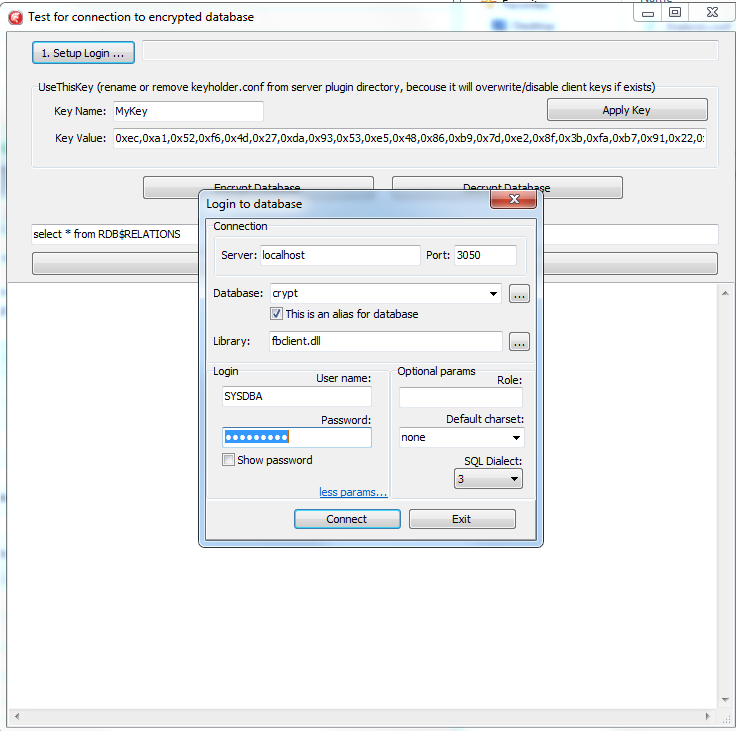

  1. Specify database path or alias in "1. Setup Login". This database will be used in the next steps.
  2. Specify the key name and value to be used. If you have previously used key RED, set Key Name = RED and copy the key value from the KeyHolder.conf file.
  3. You can encrypt and decrypt database with the specified key. Please note - encryption takes time, and it requires to have an active connection to the database
  4. Click Execute query to test the connection to the encrypted database with the simple select


Please note: the test application can connect to the encrypted database only through TCP/IP, xnet is not supported.

In the example of the client application, all database operations (connection, transaction start, transaction's commit, query start, etc) are made in the very straightforward way to demonstrate all steps of the operation against the encrypted database. You can use this code as an example for the implementing encryption in your applications.




Step 3: backup and restore of the encrypted database

The full verified backup with gbak.exe is the primary backup method for Firebird databases. The standard Firebird distribution includes command line tool gbak.exe to perform it, however, it will not work with the encrypted database in the production mode (without keys on the server). After the encryption, only authorized applications can access an encrypted database, and standard gbak is not an authorized application.

We all know how important backup and restore for the database health and performance, so, in order to perform backup and restore for the encrypted databases, we have developed gbak.exe with the encryption support, and included it into the FEPF.

It is important to say, that this gbak.exe produces the encrypted backup file: it encrypts the backup with the same key as for the database encryption.

If you run gbak.exe from the plugin files with the switch -?, you will see the new parameters of gbak.exe, which are used to work with the encrypted databases:

    -KEYFILE              name of a file with DB and backup crypt key(s)
    -KEYNAME              name of a key to be used for encryption
    -KEY                  key value in "0x5A," notation
Let's consider how to use gbak.exe with encrypted databases and backups.

Backup encrypted Firebird database

To backup an encrypted Firebird database, gbak.exe must provide the key for the server. This key will be used to connect and read the database and to encrypt the backup file.
There are 2 ways to supply the key for gbak.exe: store key in the key file or explicitly put it in the command line:

Example of backup with the encryption key in the key file:

gbak.exe -b -KEYFILE h:\Firebird\Firebird-3.0.3.32900-0_Win32\examplekeyfile.txt -KEYNAME RED localhost:h:\employee_30.fdb h:\testenc4.fbk -user SYSDBA -pass masterkey
Here, in the parameter -KEYFILE we specify the location of the files with keys, and in -KEYNAME  - the name of the key being used. Please note, that the file examplekeyfile.txt has the same structure as KeyHolder.conf.
If you apply backup with encryption (gbak -b -keyfile ... -keyname ... ) on the unencrypted database, the backup will be encrypted.

Example of backup with the explicit key:

gbak -b -KEY 0xec,0xa1,0x52,0xf6,0x4d,0x27,0xda,0x93,0x53,0xe5,0x48,0x86,0xb9,0x7d,0xe2,0x8f,0x3b,0xfa,0xb7,0x91,0x22,0x5b,0x59,0x15,0x82,0x35,0xf5,0x30,0x1f,0x04,0xdc,0x75, -keyname RED localhost:h:\employee30\employee30.fdb h:\testenc303.fbk -user SYSDBA -pass masterkey
Here, we specify the key value in the parameter -KEY, and the name of the key in the parameter -KEYNAME. It is necessary to specify key name even if we supply the explicit key value.

Restore the backup to the encrypted Firebird database

The gbak can also restore from the backup files to the encrypted databases. The approach is the same: we need to provide the key name and key value to restore the backup file.

See below examples of the restore commands:

Example of restore with the encryption key in the keyfile:

gbak -c -v -keyfile h:\Firebird\Firebird-3.0.3.32900-0_Win32\examplekeyfile.txt -keyname white  h:\testenc4.fbk localhost:h:\employeeenc4.fdb  -user SYSDBA -pass masterkey

Example of restore with the explicit key:

gbak -c -v -key 0xec,0xa1,0x52,0xf6,0x4d,0x27,0xda,0x93,0x53,0xe5,0x48,0x86,0xb9,0x7d,0xe2,0x8f,0x3b,0xfa,0xb7,0x91,0x22,0x5b,0x59,0x15,0x82,0x35,0xf5,0x30,0x1f,0x04,0xdc,0x75, -keyname RED  h:\testenc4.fbk localhost:h:\employeeenc4.fdb  -user SYSDBA -pass masterkey

If you restore from an unencrypted backup file with encryption keys (gbak -c -keyfile ... -keyname ...) , the restored database will be encrypted.

Contact us

Please contact us with any questions: [email protected].
